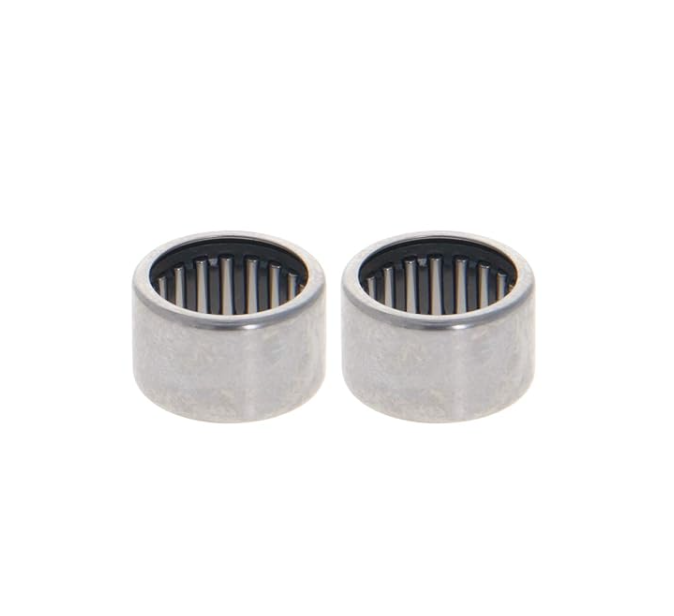

SCE108 needle roller bearing
Due to the huge variety of rollers, the bearings have a high load-carrying ability and stiffness. The closed end makes them suitable for bearing preparations in which they are situated at the top of a shaft.
Excessive radial load-wearing capability
Accommodate small axial guidance forces
Excessive stiffness
The very low move-sectional top
SCE108 Needle Roller Bearings
SCE108 Needle roller bearings are normally utilized in programs in which the housing bore cannot be used as a raceway for a needle curler and cage meeting, however wherein a totally compact and economical bearing association is needed.
Good heat tolerance, high load-carrying capacity, and stiffness
Low cross section, enables downsizing and suit for use in restricted mounting spaces
Pre-Lubricated.
Good running properties
Designations: | SCE108 |
Main dimensions | 15.875×20.638×12.7 |
Bore Dia | 15.875 |
Outside Dia | 20.638 |
Width Dia | 12.7 |
C | 8.559 kN Radial dynamic load rating |
C0 | :12.06 kN Radial Static load rating |
Grease rpm | 17600 r/min Reference speed |
Oil rpm | 18000 r/min Limiting speed |
Weight | 0.012 kg |
Category: | Needle Roller Bearings |
Seals Type: | No Seal |
