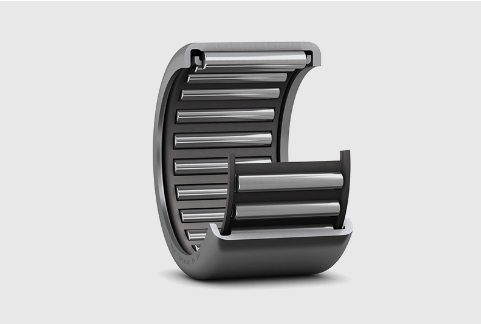

HK 2030 Open Stamped Outer Ring Needle Roller Bearing
Drawn cup needle curler bearings are normally utilized in packages where the housing bore can not be used as a raceway for a needle curler and cage meeting, but where a totally compact and not pricey bearing association is needed. attributable to their big number of rollers, the bearings have a high load carrying ability and stiffness.
Advantage
High radial load carrying ability
Excessive stiffness
Very low go-sectional height
HK 2030 high precision bearing. It has extremely high quality and performance and combines excellent functionality with customer satisfaction, which reaches 99%.
Dimensions | |
Bore diameter of needle roller complement | 0.787 in |
Outside diameter | 1.024 in |
Width | 1.181 in |
Performance | |
Basic dynamic load rating | 4 699 lbf |
Basic static load rating | 9 105 lbf |
Reference speed | 12 000 r/min |
Limiting speed | 14 000 r/min |
Dimensions | ||
Fw | 0.787 in | Diameter under rollers |
D | 1.024 in | Outside diameter |
C | 1.181 in | Width |
r | min.0.031 in | Chamfer dimension drawn cup (outer ring) |
