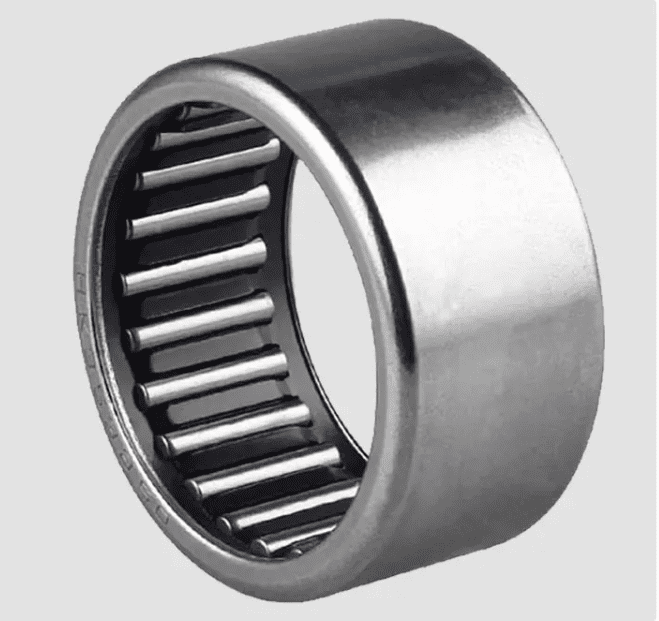

NK1616 needle roller bearing
Single row needle curler bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an high-quality choice for compact bearing arrangements in applications the place hardened and ground raceways can be provided on the shaft. The outer ring includes two vital flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both instructions
NK1616 Needle Roller Bearing - the perfect solution for your industrial needs. This high-quality bearing is perfect for use in a range of applications, from machinery and equipment to automotive and aerospace industries.
Made from premium materials and manufactured to exacting standards, the NK1616 Needle Roller Bearing boasts a range of impressive features that ensure superior performance and durability. It is a compact, lightweight bearing that can withstand high speeds and loads, making it perfect for use in even the most demanding environments.
Dimensions
Fw | 16 mm | Diameter under rollers |
D | 24 mm | Outside diameter |
C | 16 mm | Width |
r1,2 | min.0.3 mm | Chamfer dimension outer ring |
Abutment dimensions
Da | max.22 mm | Abutment diameter housing (with flanges) |
ra | max.0.3 mm | Fillet radius |
Calculation data
Basic dynamic load rating | C | 11.7 kN |
Basic static load rating | C0 | 15.3 kN |
Fatigue load limit | Pu | 1.8 kN |
Reference speed | 22 000 r/min | |
Limiting speed | 26 000 r/min |
Mass
Mass bearing | 0.022 kg |
One of the most impressive features of the NK1616 Needle Roller Bearing is its innovative design. It has a self-aligning capability, which allows it to compensate for any misalignments in the application. This ensures that the bearing remains functional and reliable, even in harsh conditions.
Another key benefit of the NK1616 Needle Roller Bearing is its high load-carrying capacity. This means that it can support significantly more weight than other types of bearings, making it ideal for use in heavy machinery and equipment.
In addition to its excellent performance and reliability, the NK1616 Needle Roller Bearing is also easy to install and maintain. It is a cost-effective solution that requires minimal servicing, which can help to reduce downtime and increase productivity.
