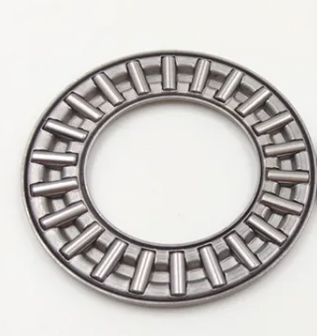

AXK2035 thrust needle roller bearing

They offer an excessive degree of stiffness inside a minimum axial space. in programs in which the faces of adjacent machine additives serve as raceways, needle curler thrust bearings take up no greater area than a conventional thrust washing machine. the bearings also can be mixed with bearing washers to create whole bearings.

High axial load-wearing capability

Excessive stiffness

Long provider life

Require minimal axial area

May be combined with bearing washers

Contact Now E-Mail Telephone WhatsApp

Product Details

AXK2035 Thrust Needle Roller Bearings

Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise. Needle Roller Thrust Bearings can accommodate axial loads in one direction only. Combined with 2 washers for applications where adjacent machine components cannot serve as raceways.

AXK2035 thrust needle roller bearing

Part Number	AXK2035
The equivalents designations	7316577013811
Bearing Type	Needle Roller Thrust Bearing

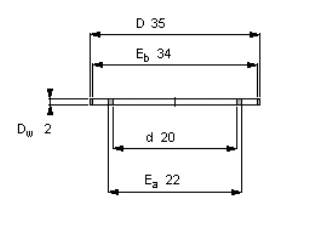

Inner dia. (d)	20 mm
Outer dia. (D)	35 mm
Width (B)	2 mm
Size	20 mm * 35 mm * 2 mm
Weight	0.005 kg
12900 N	radial dynamic load capacity (Dyn. Cr)
45600 N	radial static load capacity (Stat. Cor)
8000 r/min	Maximum RPM (Speed in grease)
8500 r/min	Maximum RPM (Speed in oil)
