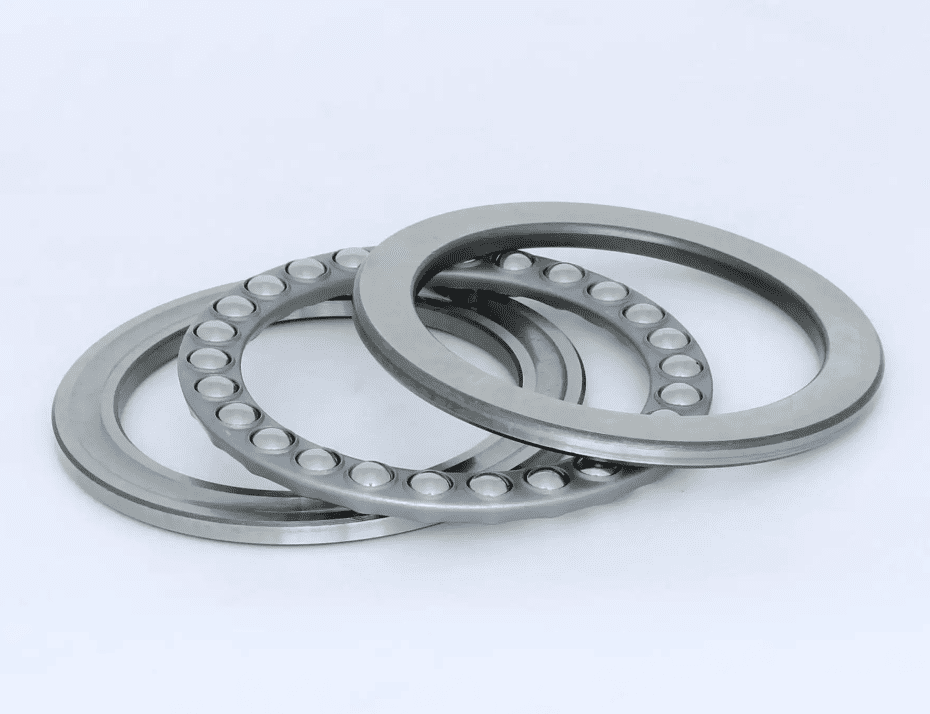

Thrust ball bearing 51112
Single route thrust ball bearings can accommodate axial masses in one direction. They have to now not be subjected to any radial load. Their separable aspects facilitate mounting/dismounting and preservation inspections. Many of the elements are interchangeable. The shaft washers have a floor bore that allows an interference fit.
High precision;
Wear resistance;
High speed;
Widely use.
51112 thrust ball bearing
Thrust ball bearings are used to endure axial and radial blended masses which are usually axial loads, however the radial load shall now not exceed 55% of the axial load. Compared with different thrust ball bearings, this bearing has decrease friction factor, greater velocity and aligning performance.
Dimensions
60 mm | Bore diameter |
85 mm | Outside diameter |
17 mm | Height |
≈85 mm | Outside diameter shaft washer |
≈62 mm | Inner diameter housing washer |
min.1 mm | Chamfer dimension washer |
Calculation data
Basic dynamic load rating | C | 41.6 kN |
Basic static load rating | C0 | 122 kN |
Fatigue load limit | Pu | 4.55 kN |
Reference speed | 3 600 r/min | |
Limiting speed | 5 000 r/min | |
Minimum load factor | A | 0.077 |
Mass bearing (including seat washer where applicable) 0.27 kg
