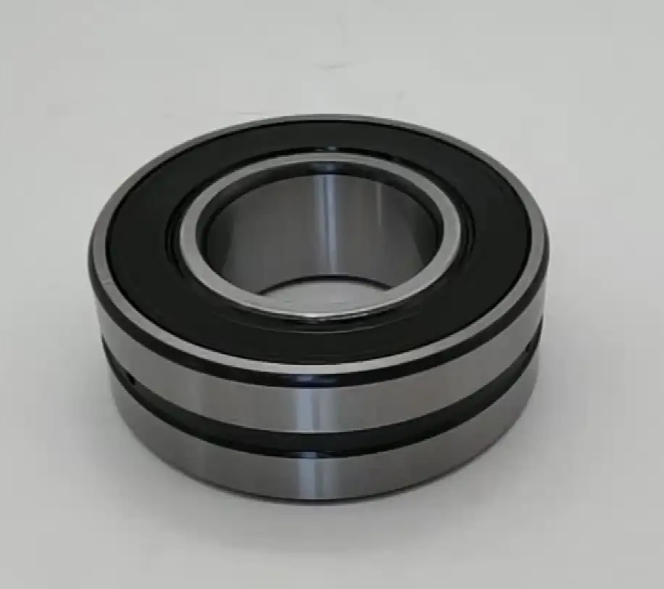

Self aligning roller bearing BS2-2205-2RSVT143

A spherical roller bearing is a rolling-element bearing that allows rotation with low friction, and allows angular misalignment. Typically these bearings assist a rotating shaft in the bore of the internal ring that may additionally be misaligned in respect to the outer ring. The misalignment is possible due to the spherical inner structure of the outer ring and spherical rollers.

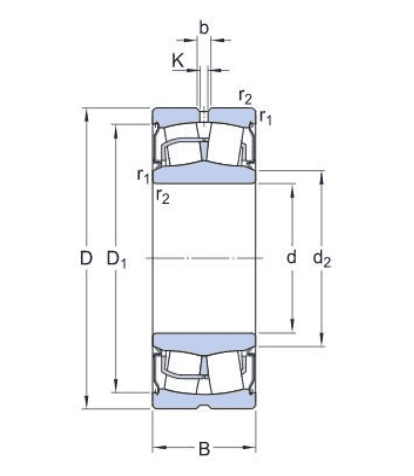

DIMENSIONS

Bore diameter                25 mm

Outside diameter           52 mm

Width                             23 mm

Performance

Basic dynamic load rating     49.9 kN

Basic static load rating          44 kN

Limiting speed                      6 300 r/min

Properties

Number of rows                                        2

Locating feature, bearing outer ring        Without

Bore type                                                  Cylindrical

Cage                                                         Sheet metal

Radial internal clearance                          CN

Tolerance class for dimensions                 Normal

Tolerance class for run-out                       P5

Sealing                                                      Seal on both sides

Sealing type                                              Contact

Lubricant                                                   Grease

Relubrication feature                                With

spherical roller bearings are not actually spherical in shape. The rolling factors of spherical roller bearings are mostly cylindrical in shape, however have a profile that makes them appear like cylinders that have been barely over-inflated.

Construction
Spherical roller bearings consist of an internal ring with two raceways inclined at an angle to the bearing axis, an outer ring with a frequent spherical raceway, spherical rollers, cages and, in certain designs, additionally interior information rings or centre rings. The bearings can additionally be sealed.


Applications
Gearboxes Pumps Wind Turbines Material Handling Mining and construction equipmentSpecifications
Inner Diameter: 25 mm Outer Diameter: 52 mm Width: 23mm
