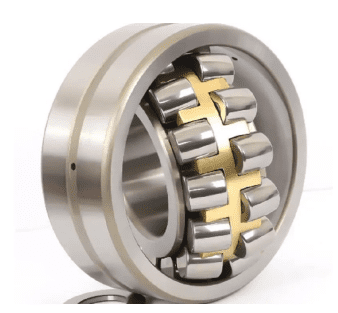

Self aligning roller bearing 22224E 22224E1
1. Accommodate misalignment
2. High load carrying capacity
3. Relubrication features
4. Low friction and long service life
5. Increased wear resistance
6. Strong roller design
Spherical Roller Bearings 22224E can accommodate heavy loads in both directions.
They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction and temperature.
The design includes characteristics to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Dimensions is 120*215*58mm
New technology
brass CA cage steel CC cage
Type | Roller |
Structure | Spherical |
Applicable Industries | Manufacturing Plant |
Model | Number: 22224 |
Precision | Rating: P0,P5,P6 |
Seals | Type: OPEN |
Number of Row: | Double row |
Place of origin | China |
Material | Chrome steel |
Cage type | CA,CC,MB,E,E1 |
Cage material | brass,steel |
Certification | ISO9001:2008 |
Clearance: | C0,C3,C4 |
Package:pallet, | Wooden case,industrial package or as customer’s request |
