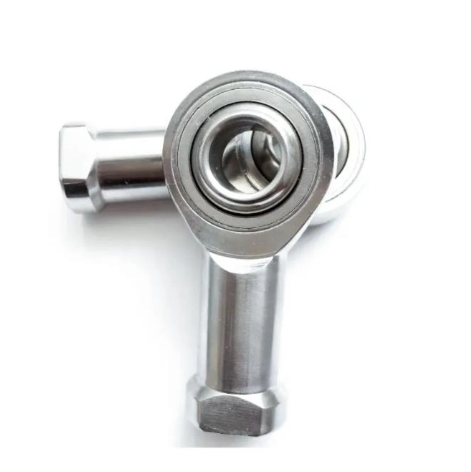

Rod end bearing POS10 PHS10

Rod end joint bearing can simultaneously bear large radial load and two-way axial load.

It has a large load capacity and impact resistance, and has characteristics of corrosion resistance, wear resistance, self-aligning, good lubrication or self-lubricating, no lubricating dirt pollution.

It can be used in machine tools, textile machinery, packaging machinery control and link mechanism.

Contact Now E-Mail Telephone WhatsApp

Product Details

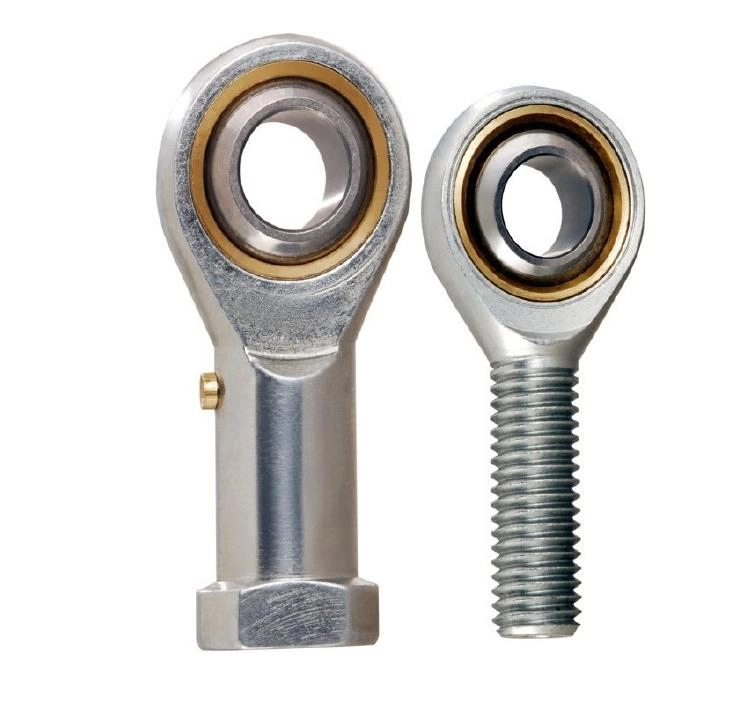

Rod end bearing POS10 PHS10

Premium quality rod end bearings – a versatile and reliable solution for a wide range of applications. These bearings are designed to provide exceptional performance and durability, ensuring a longer service life and smoother operation.

Constructed using high-grade materials, our rod end bearings are expertly crafted to ensure optimal strength and resistance to wear and tear. Featuring a precision-designed ball joint, our bearings offer smooth and accurate movement, reducing friction and eliminating noise.

Rod end bearing POS10 PHS10

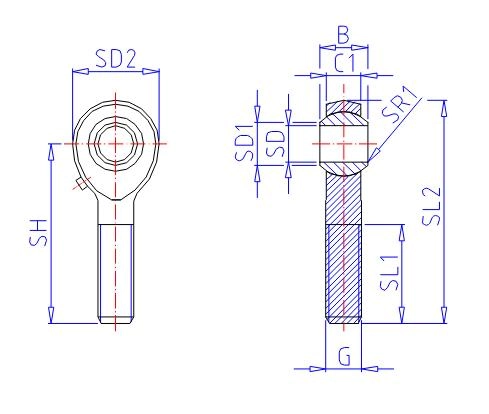

Dimensions

10 mm	Bore diameter
max.29 mm	Diameter head
14 mm	Width inner ring
M 10	Thread
max.11.5 mm	Width head
48 mm	Height shank end face - centre rod end eye
13 °	Angle of tilt
19.05 mm	Raceway diameter inner ring
min.28 mm	Length threat
max.64 mm	Length (height) housing
min.0.3 mm	Chamfer dimension bore

The sales will select the most suitable products according to customer’s request. The engineer will track the usage throughout the process. The customer can communicate with engineer directly if there is any problem.
