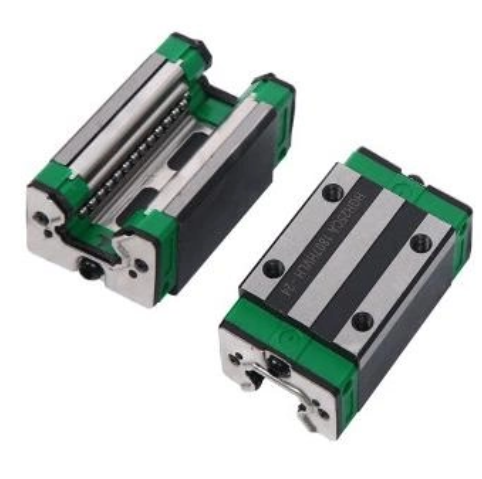

Guide rail sliding block bearing HGH15CA
HGH15CA guide rail has high positioning accuracy and less wear which can maintain accuracy for a long time.
It is suitable for high-speed movement and greatly reduce the drive horsepower required by the machine,
It can withstand the load in the left and right directions at the same time, easy assembly and interchangeability.
HG series is a four-row single-arc tooth contact linear guide, and integrates the optimized structure of the overweight load precision linear guide, compared with other linear guides to improve the load and rigidity; With four directions and other load features, and automatic aligning function, can absorb the mounting surface assembly error, get high precision demands. The concept of high speed, high load, high rigidity and high precision has become the trend of the future development of industrial products around the world.

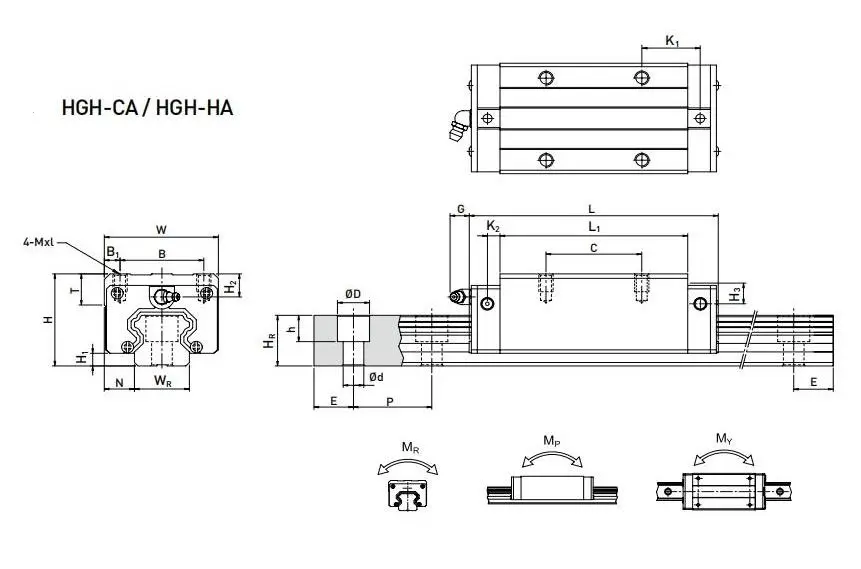

Dimensions OF HGH15CA
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | Wr | Hr | D | h | d | P | E |
| 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 4.85 | 5.3 | M4*5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 |
| C | Cor |
| 11.38 | 16.97 |
WEIGHT
0.18KG BLOCK
1.45KG RAIL/M
