NJ206E single row cylindrical roller bearing

The NJ206E Single Row Cylindrical Roller Bearings are meticulously crafted using high-quality materials, ensuring durability and longevity. The inner and outer rings are precisely designed to reduce friction, resulting in smoother rotation and improved efficiency. Additionally, the rollers are optimized to distribute the load evenly, minimizing wear and tear on your equipment.



One of the standout features of these bearings is their exceptional radial capacity. This means that they can withstand heavier loads and provide superior support, making them ideal for applications that operate under intense pressure or require high-speed performance.



Safety is a top priority, and these bearings are no exception. They are equipped with advanced sealing technology, effectively preventing dust, dirt, and other contaminants from entering the bearing.



Not only do the NJ206E Single Row Cylindrical Roller Bearings deliver exceptional performance, but they are also cost-effective. Their durable construction and extended lifespan reduce maintenance and replacement costs, ultimately saving you money in the long run.




Contact Now E-Mail Telephone WhatsApp
Product Details

Introducing the NJ206E Single Row Cylindrical Roller Bearings, a revolutionary solution designed to enhance the efficiency and performance of your machinery. Whether you are in the manufacturing, automotive, or construction industry, these bearings are tailored to meet your specific needs.

Product Description

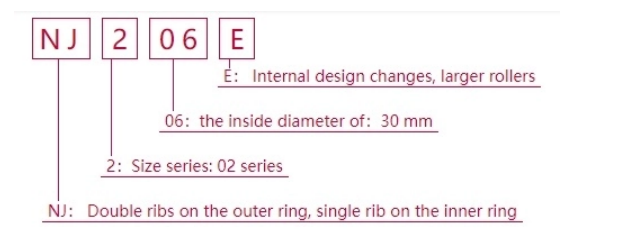

NJ206E bearing code description

NJ206E single row cylindrical roller bearing

NJ206E bearing properties



Type

Cylindrical roller bearings

Inner hole type

Cylindrical hole

Material

Hardened alloy steel

Cage material

Nylon

Limit speed-oil lubrication

13000rpm

Limit speed-grease lubrication

11000rpm

Structure

Single row

Tolerance

ISO Class 0(RBEC 1)

Oil filling hole

Without oil filling hole

Radial clearance

CN

Basic static load rating

8450 lbf
37500 N
37.50 kN

Basic dynamic load rating

8750 lbf
39000 N
39.00 kN

Seal type

Open

Weight

0.498 lb
0.226 kg

Application temperature range

-40 to 250 ºF
-40 to 120 ºC

NJ206E bearing size specifications

Cylindrical roller bearings - separable inner ring with one rib and outer ring with two ribs - NJ type - Dimensions

d

1.1811 in
30.000 mm

D

2.4409 in
62.000 mm

B

0.6299 in
16.000 mm

Fw

1.4764 in
37.500 mm

J

1.6181 in
41.100 mm

r

0.0394 in
1.000 mm

da min

1.3386 in
34.000 mm

Da max

2.2441 in
57.000 mm

r1as max

0.0236 in
0.600 mm
