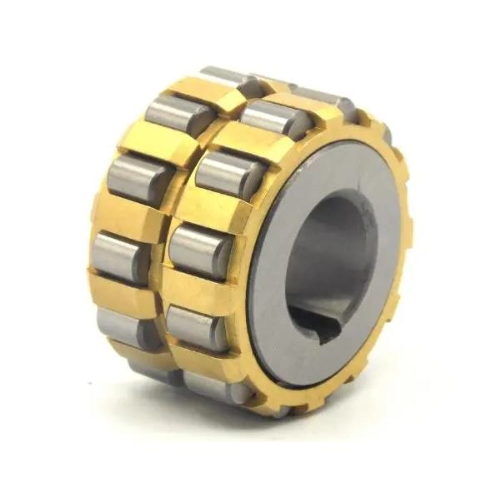

Eccentric bearing 6142935 YSX
Reliable quality
High accuracy
Fast delivery
As an important part of the reducer, eccentric bearing is very important in the operation of the reducer. Reliable quality and accuracy are the prerequisites for worry-free operation of equipment.
6142935YSX is gear reducer bearing, eccentric Bearing.
DIMENSIONS:
Inner ring: 25mm
Outer ring:68mm
Thickness:42mm
Application: Reducer/reduction gears

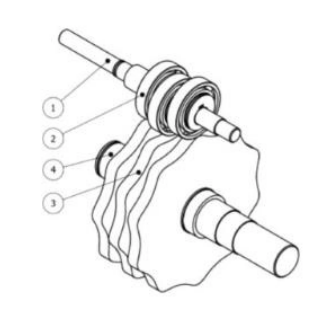

An eccentric rolling drive is a transmission with parallel but non-overlapping shafts, consisting of an eccentric rolling unit fitted with a CAM. The eccentric rolling drive consists of an input shaft 1 on which an eccentric rolling unit 2 is mounted, which in turn consists of an eccentric bushing and a ball bearing (Figure 1). The rotation of the input axis 1 causes the outer surface of the eccentric rolling unit 2 to roll on the active surface of the CAM 4 coaxial mounted on the output axis 3, causing it to rotate.
