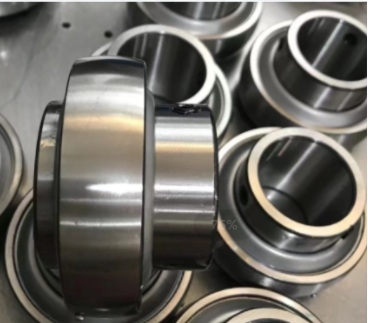

Insert bearing
Advantages of outer spherical bearings
1. Simple structure and not easily damaged. The structure of the outer spherical bearing is relatively simple and does not have a complicated design, so its service life is relatively long and it is not easily damaged.
2. Large carrying capacity. Since outer spherical bearings are widely used in heavy-duty equipment, their load-bearing capacity is very strong and they can withstand large radial and axial loads.
3. Can adapt to a large number of angle errors and deviations. The outer spherical bearing can adapt to angular deviation and axial displacement, so it can maintain the normal operation of the equipment in some unexpected situations.
4. Easy to install and maintain. Due to the simple structure of the outer spherical bearing and the easy disassembly and assembly of the bearing, it is very convenient in terms of installation and maintenance.
Applications of outer spherical bearings
1. Applicable to most bearing parts. The outer spherical bearing plane can be directly installed with most bearing parts and has a wide range of applications.
2. Widely used in agricultural machinery and construction machinery. Due to their large load-bearing capacity, outer spherical bearings are suitable for large heavy-duty equipment and are therefore widely used in agricultural machinery and construction machinery.
Insert spherical ball bearings can be divided into three categories according to the way they cooperate with the shaft:

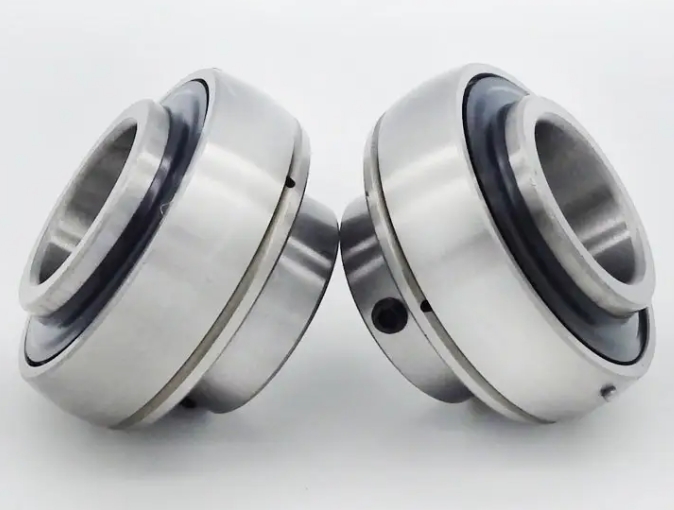

1. The code names of spherical ball bearings with top wire are: UC200 series (light series), UC300 series (heavy-duty series), and the deformed product UB(SB)200 series. If the use environment is suitable for a small environment, generally choose the UC200 series, and vice versa. Then choose UC300 series. Usually there are two jackscrews on the outer spherical ball bearing, and the included angle is 120°. Its characteristic is that when cooperating with the shaft, the jackscrew is used to push against the shaft, and then it has a fixing effect, but its cooperation Environmental demands must oscillate on a small scale. This kind of outer spherical ball bearing is relatively common and widely used in various manufacturing industries such as textile machinery and ceramic machinery.
2. Tapered outer spherical ball bearings are codenamed: UK200 series, UK300 series. The inner diameter of this type of spherical ball bearing is a taper inner hole of 1:12 ratio. It must be used in conjunction with an adapter sleeve. The characteristics of this type of spherical ball bearing are: it can withstand a larger load than the spherical ball bearing with a top wire. load. Because the inner diameter of the same type of adapter sleeve used with it is smaller than that of the spherical ball bearing with a top wire. For example, the inner diameter of the UC209 spherical ball bearing with a top wire is 45mm, and the diameter of the shaft used with it is 45mm, and if If you change to a tapered outer spherical ball bearing, you can only choose an adapter sleeve with an inner diameter of 45mm, and the only tapered outer spherical ball bearing that cooperates with a 45mm adapter sleeve is UK210 (of course, if the fit is higher, you can choose UK310). Therefore, the conformity concession accepted by UK210 is much larger than that of UC209.
3. Outer spherical ball bearings with eccentric sleeves are codenamed: UEL200 series, UEL300 series, SA200 series. The main feature of this type of outer spherical ball bearing is that the upper end of the bearing has a certain degree of eccentricity, and an eccentric sleeve with the same degree of eccentricity is used to match it. This type of bearing can also be said to be a special bearing, because it is mainly used on agricultural machinery (harvesters, straw returning machines, threshers, etc.). This type of outer spherical ball bearings is mainly used on structures with strong beating, eccentricity The cooperation of the structure can effectively reduce the strong beating.
