3203-2RS
High stiffness and load capacity
Suitable for high-speed rotation and large radial and axial loads.
Its seas can effectively prevent dust and pollutants from entering the bearing interior and extend the bearing life.

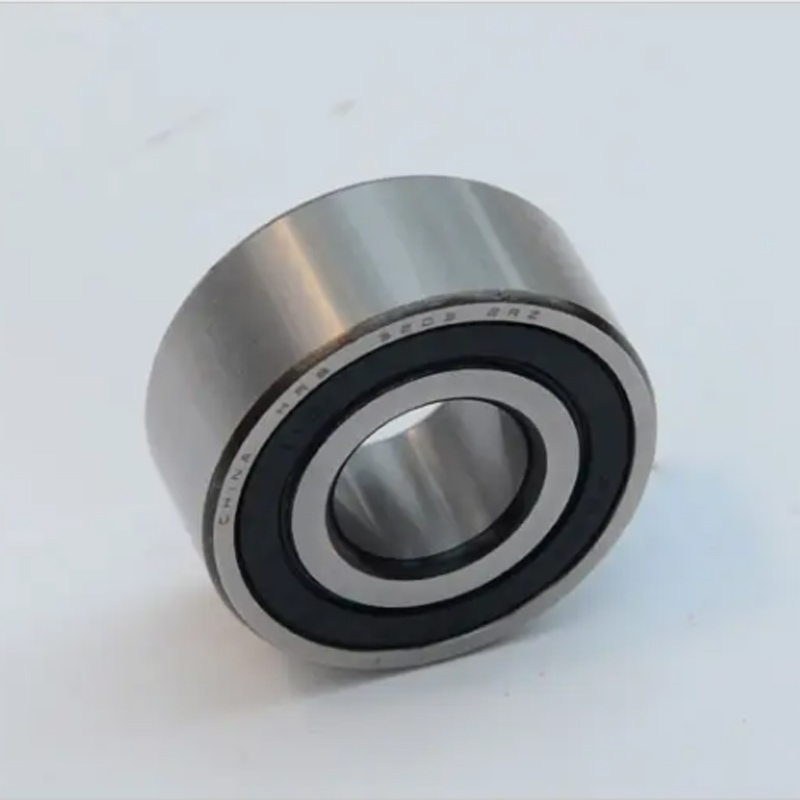

3203-2RS is angular contat ball bearing. It consists of inner ring, outer ring,balls and seals. -2RS type is rubber seals.
Widely used in machine tools, metallurgy, mining, petroleum, chemical, electric power and other industries.

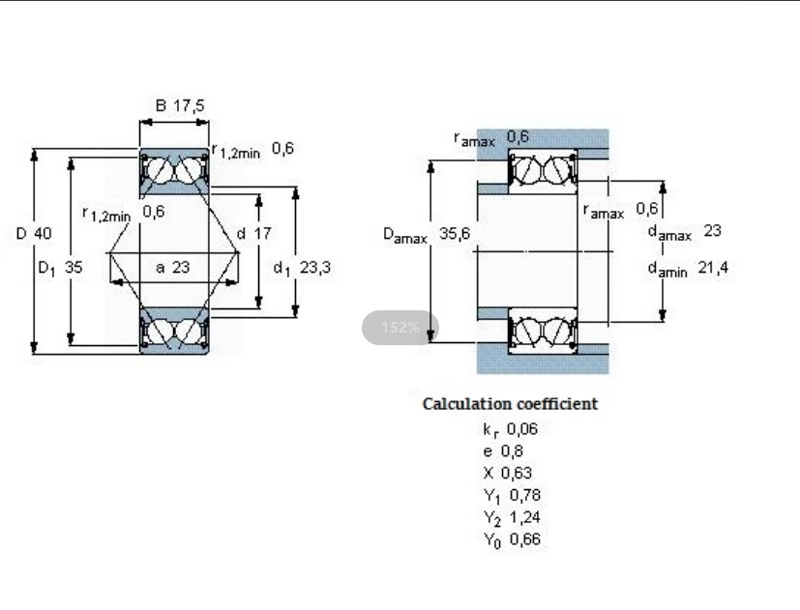

DIMENSIONS
MAIN DIAMETER | |
d | 17mm |
D | 40mm |
B | 17.5mm |
Basic load rating | |
C | 14300N |
C0 | 8800N |
Limited load rating | |
Pu | 365N |
Limited speed | 12000 r/min |
Weight | 96 g |
Double-row angular contact ball bearings like the 3203-2RS are particularly useful for applications where there are both radial and axial loads present, as they can handle both types of forces simultaneously. The rubber seals provide added protection against contamination from dust, dirt, and other particles. Overall, the 3203-2RS is a versatile and reliable bearing that can be used in a wide range of industrial and commercial settings.
